Foodline 500L Industrial Yogurt Machine Line for Sale in Malawi
Our client, Yamikani Chirwa, produces liquid yogurt from fresh milk and sought to scale up his operations by introducing yogurt making equipment. He outlined the following requirements for this yogurt production line:
Product: Liquid yogurt
Raw Material: Fresh milk
Capacity: 500 liters per batch
Packaging: Bottles and pouches (sizes including 350ml, 500ml, and 1L)
Workshop Dimensions: 10m (length) x 8m (width)
After consulting with our engineers, our product manager presented a detailed proposal to Yamikani. The proposal detailed all equipment, technical specifications, and the total price.

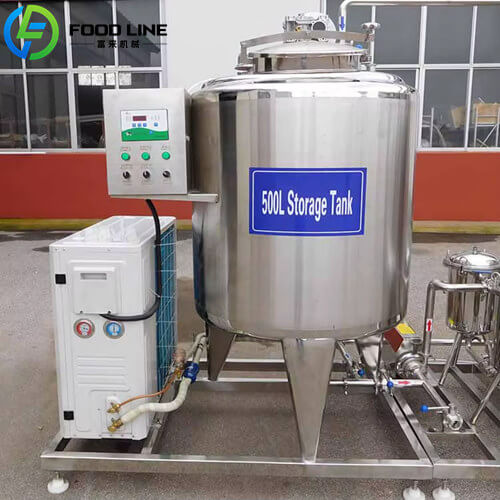

500L milk storage tank stainless steel
Key equipment included in the proposal:
Refrigeration tank Filter Preheating tank Homogenizer Pasteurization tank Fermentation tank Bag filling machine Bottle filling machine Semi-automatic capping machine CIP cleaning system Pump Valves and piping
Yamikani carefully reviewed the proposal against his requirements. He asked detailed questions regarding the functions, capacities, and roles of the homogenizer, pasteurizer, and fermentation tanks in the yogurt production process. Our manager also explained the piping connections and the material transfer process between the various pieces of equipment in detail.
Yamikani was very satisfied with the proposal. He went to the bank to pay the 30% deposit. Now this industrial yogurt machine line runs well and his daily output keeps growing.
Filtration capacity: 1t/h Working temperature: ≤120°C Working pressure: ≤0.2MPa Filter material: 304 stainless steel Filtration precision: 200 mesh/inch

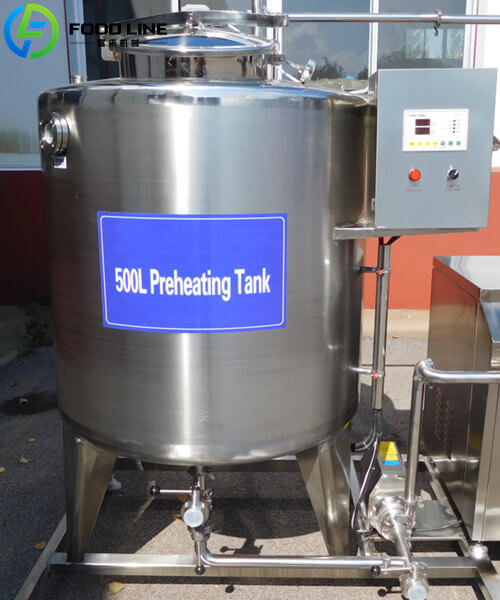

Preheating Tank
500L
SUS304
380V/50Hz
1300×1000×1850mm
Stirring motor power: 0.37kW Stirring speed: 36r/min Electric heating power: 12kW×2 Inner tank diameter/height: 900mm/850mm Material inlet/outlet diameter: φ38mm

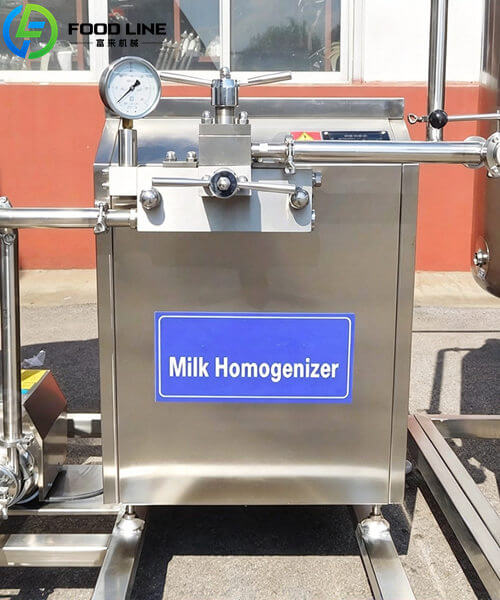

Homogenizer
500L/H
SUS304
380V/50Hz
1010×616×975mm
Capacity: 500L/H Max pressure: 25MPa Working pressure: 20MPa Motor power: 4kW

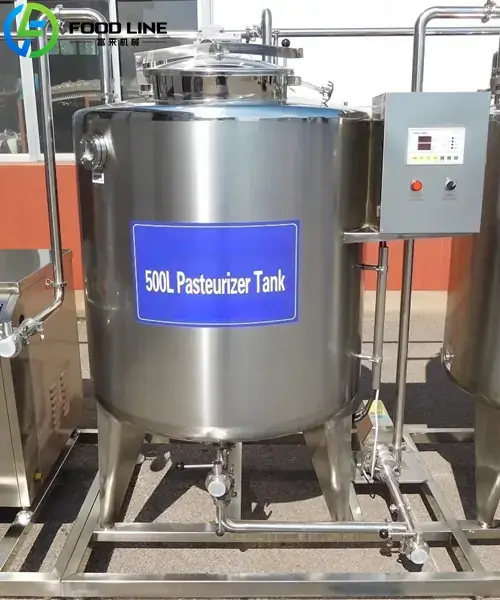

Pasteurization Tank
500L
SUS304
380V/50Hz
1300×1000×1850mm
Stirring motor power: 0.37kW Stirring speed: 36r/min Electric heating power: 12kW×2 Inner tank diameter/height: 900mm/850mm Material inlet/outlet diameter: φ38mm

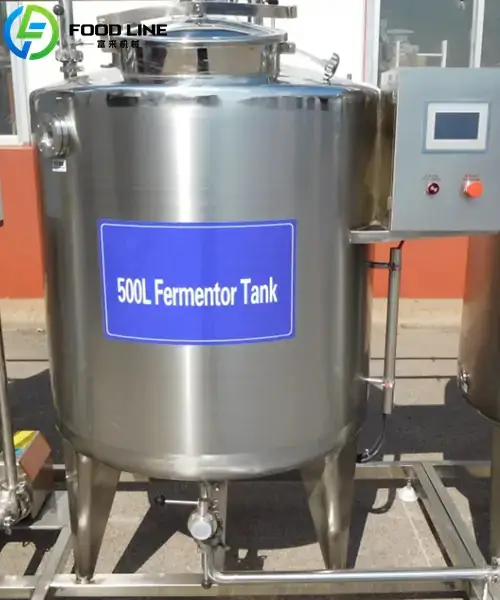

Fermentation Tank
500L
SUS304
380V/50Hz
1300×1000×1850mm
Stirring motor power: 0.37kW Stirring speed: 36r/min Electric heating power: 12kW×2 Inner tank diameter/height: 900mm/850mm Material inlet/outlet diameter: φ38mm
Vertical Bag Filling Machine
Back seal with cursor positioning
380V/50Hz
1050×850×2050mm
Power: 2.5kW Bag length: 50–150mm Bag width: 65–150mm Film width: 130–380mm Bag capacity: 200–1050ml Machine weight: 370kg Sealing type: back seal
Easily scale up production capacity by adding more equipment as your business grows.

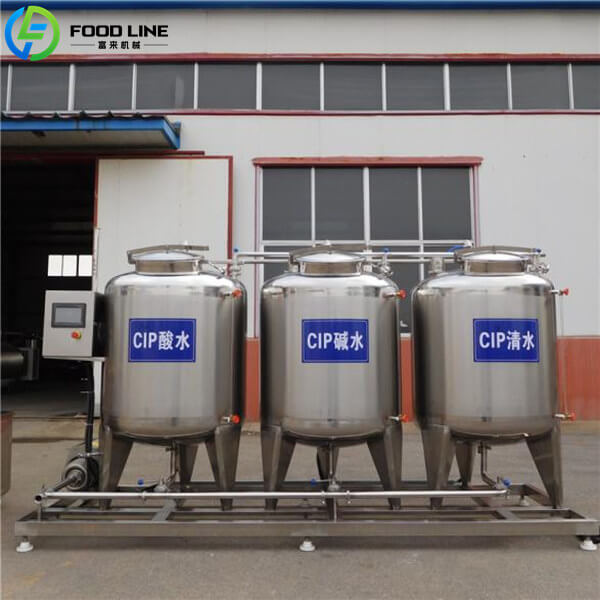

automatic cip system in 500l yogurt production line
Tell us your batch size and packaging. We’ll match you with the right industrial yogurt machine line.

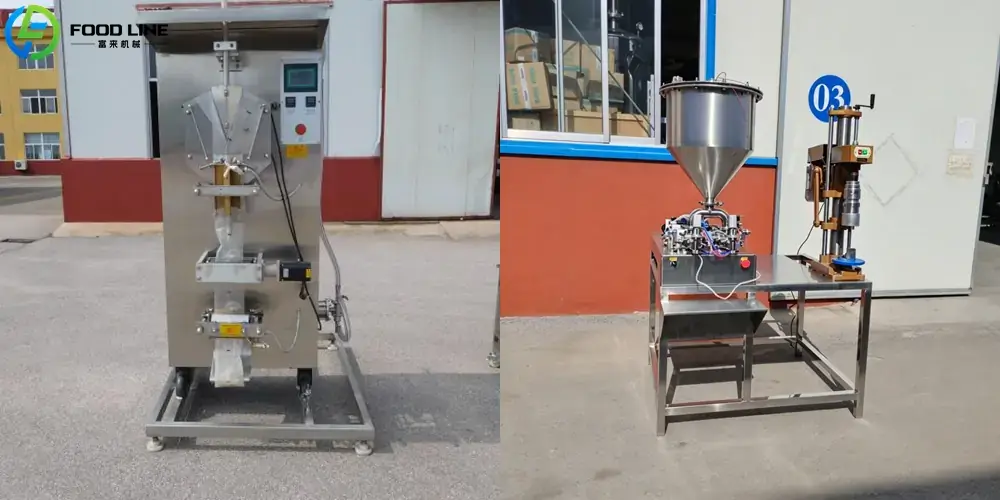

bag and bottle filling machine for yogurt
Get a Custom Yogurt Processing Line for Your Dairy Plant
Looking to start or expand your yogurt business? We can design the industrial yogurt machine line based on your production capacity, facility layout, and packaging requirements. Simply provide us with the following details:
Types of yogurt products you plan to produce
Target daily output
Packaging types and specifications
Facility dimensions
Our sales team will develop a comprehensive proposal for you, including an equipment list, technical specifications, and a price quote.
