Automatic Sausage Stuffer with Portioning and Twisting

This automatic sausage stuffer with portioning and twisting capabilities allows you to complete the casing filling and sausage linking processes in a single step. Simply set the desired weight or length for each sausage link, and the machine handles the rest: filling the casing, twisting it to form links, and automatically proceeding to the next segment. This not only saves time but also ensures uniform sausage dimensions. If you are looking for quantitative sausage stuffer and twister for continuous sausage production, contact Foodline for a free quote.

Inquire Now – We’ll Reply Within 24 Hours

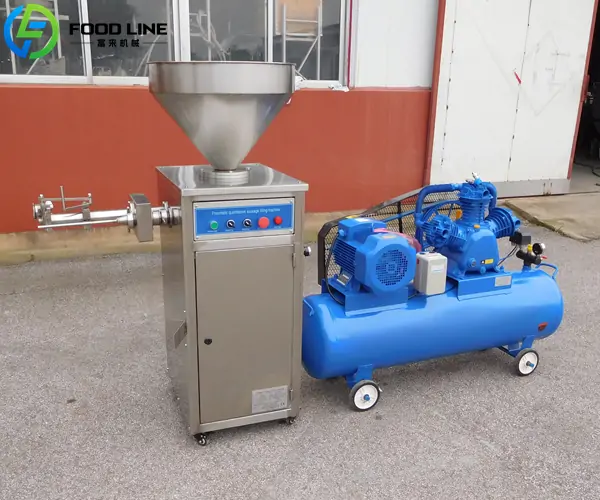

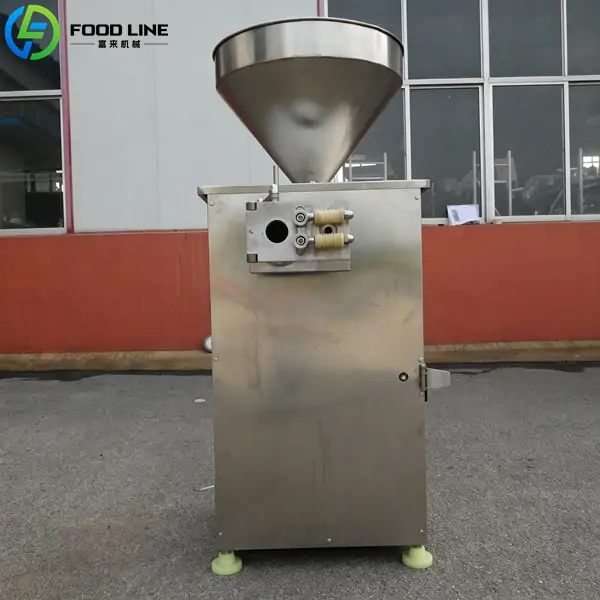

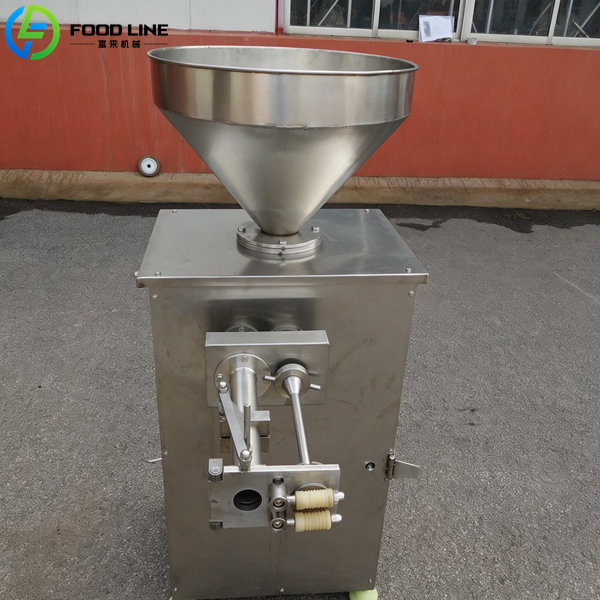

Foodline Automatic Sausage Stuffer with Portioning and Twisting

The automatic sausage stuffing machine combines sausage filling, portion control, and automatic twisting functions into a single unit.

The workflow is as follows: Meat mixture → Portion filling → Automatic twisting → Continuous sausage links

Operators load the prepared meat mixture into the hopper and set the desired portion weight or length. The machine pushes the mixture into the casing according to the settings. When a segment reaches the target amount, the twisting mechanism rotates the casing to form a separation, and the machine proceeds to fill the next segment.

This portioning sausage filler and twister is ideal for manufacturers requiring the production of fixed-portion sausages in continuous links.

Depending on the model, our automatic sausage stuffer machine for portioning and linking utilizes various drive systems, including hydraulic, pneumatic, and servo-motor drives.

Send Us an Inquiry for Our All-in-One Sausage Stuffer

Specifications of Automatic Sausage Filler for Portioning and Twisting

Filling Speed	80 sets/min
Portioning Range	50–1000 g
Air Supply	≥0.7 MPa
Power Supply	220 V, 50 Hz
Working Center Height	850 mm
Hopper Capacity	57 L
Production Capacity	3,000 kg/h
Standard Filling Tube Diameters	φ15 mm, φ20 mm, φ25 mm, φ33 mm
Weight	130 kg
Dimensions	640 × 640 × 1430 mm

Get a Personalized Quote for Your Sausage Manufacturing Needs

Free Quote! WhatsApp/Tel/WeChat: +86 17837195753

Suitable for Various Sausages

This sausage filling and linking machine can process a wide range of meat-filled products.

• Fresh sausage
• Smoked sausage
• Cooked sausage
• Frankfurter
• Hot dog
• Breakfast sausage
• Red sausage
• Taiwanese sausage
• Ham sausage
• Fermented sausage
• Meat sausage

This automatic sausage stuffer and linker is compatible with various types of casings:

• Natural casing (such as pork casing)
• Collagen casing
• Artificial casing (including plastic casing)

1

Key Benefits of Quantitative Sausage Stuffing and Twisting Machine

1. Continuous Stuffing, Portioning, and Linking

Multiple steps—from feeding meat mixture into the casing to portioning and twisting into individual links—are performed continuously. There is no need for separate manual portioning after filling.

2. More Accurate Weight per Sausage Link

The automatic sausage stuffer portions the filling based on the set weight. This reduces weight errors caused by manual judgment. It is ideal for sausages with fixed weights such as 50 g, 100 g, and 200 g.

3. More Consistent Twisting Positions

Twisting occurs automatically after the preset portion is reached. This keeps the position of each twist more consistent and reduces uneven link lengths caused by manual operation.

4. Less Meat Mixture Waste

Stable weight control minimizes raw material waste caused by overfilling. This is useful for production lines with strict raw material cost controls.

5. Easier Handling During Packaging

The weight and size of each sausage link are more consistent. It is easier to handle weighing, bagging, vacuum packing, and packing by quantity.

Application Scenarios for Automatic Sausage Filler Machine

This portioning automatic sausage stuffer with linker is suitable for a wide range of facilities:

• Small and medium sausage workshops
• Large meat processing plants
• Food factories that make hot dogs, frankfurters, or breakfast links
• Production lines that need fixed weight and fixed length sausages
• Plants that run natural, collagen, or artificial casings

Your Free Quote is One Click Away

Why Work with Foodline?

Foodline Machinery is a food processing equipment manufacturer and supplier based in China. Our sausage processing equipment has been exported to multiple countries such as Saudi Arabia, Zimbabwe, Nigeria, Argentina, Slovenia, and others. A Slovenian client purchased a quantitative sausage stuffing and linking machine for sausage production from Foodline.

Our sausage processing equipment range also includes sausage knotting machines, smoking ovens, bowl choppers, meat grinders, etc.

• Own Factory: Factory-made machines at direct prices.
• Custom Configuration: Configurations for different sausage production needs.
• Bulk Orders: Better prices for multiple-machine orders.
• Factory Video Call: See our machines and workshop remotely.
• Technical Support: Operation guidance and spare parts support.

Ready to Upgrade Your Sausage Production?

Want to invest in an automatic sausage stuffer that can fill, portion, and twist sausage casings in one process? Foodline’s quantitative sausage stuffer and twister enables you to produce sausages based on preset weights or lengths while automatically twisting the casings. Feel free to contact Foodline for equipment details, operation videos, and a price quote.
