Home » Food Retort Machine for High-Temperature Food Sterilization
Food Retort Machine for High-Temperature Food Sterilization
The food retort machine is a pressure vessel to sterilize packaged foods using high temperatures, high pressure, and specific holding times. It effectively eliminates harmful microorganisms in canned goods, glass jars, flexible pouches, and other sealed packaging. The benefits are significant: extended shelf life, reduced risk of spoilage, and safe storage at ambient temperatures.
Contact us now for a quote on the right industrial retort for your food production needs.
Ask for a Retort Machine Price Based on Your Needs
industrial food retort machine for sale
Foodline Food Retort Machine for Sale
The food retort heats sealed products to temperatures exceeding the normal boiling point of water. The pressure within the sealed vessel raises the water’s boiling point, allowing the system to reach temperatures of 100–135°C. Common settings include a temperature of 121°C and a pressure of 0.12–0.3 MPa.
The complete process consists of three stages:
Heating Phase: Steam or hot water fills the vessel, raising the temperature of both the retort chamber and the product core to the set value.
Sterilization Phase: The system maintains the temperature and pressure for a set duration. The F0 value is used to measure sterilization intensity.
Cooling Phase: Cooling water enters the vessel to rapidly lower the temperature. Once pressure returns to normal, the retort door opens.
Foodline We offer two types of high-temperature food retort machine.
Water Immersion Retort: Products are fully submerged in hot water, ensuring uniform heat transfer throughout the load.
Water Spray Retort: Hot water is sprayed onto the product surface. This type is ideal for flexible pouches and soft packaging.
Take Your Retort Project From Plan to Plant | +86 17837195753

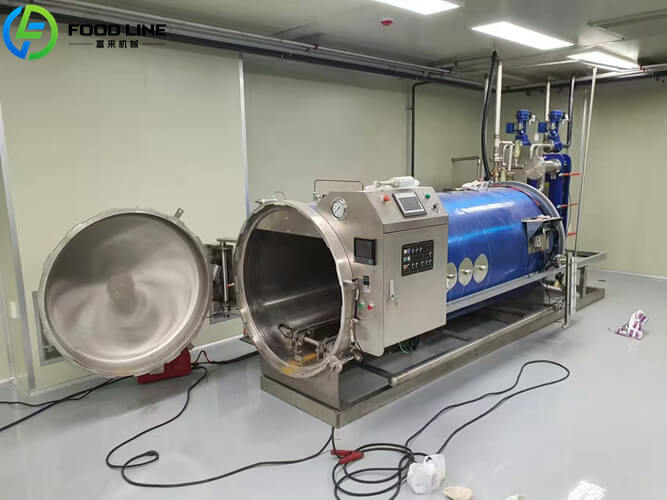

horizontal water spray retort
horizontal water immersion retort
Parameter Table of Foodline Food Retort Sterilizer
Heating Method
Model
Power
Voltage
Capacity
Trays/Trolleys
Tray Dimensions (mm)
Electric Heating / Steam
500×800
48 KW
380 V
40 KG
2/1
320×800×150
Electric Heating / Steam
700×1200
60 KW
380 V
120 KG
3/1
450×1200×150
Electric Heating / Steam
800×1500
60 KW
380 V
150 KG
3/1
600×1500×150
Electric Heating / Steam
900×1800
90 KW
380 V
550 KG / 250 KG
8/2
650×900×150
Electric Heating / Steam
1000×2200
90 / 120 KW
380 V
630 KG
12/3
1100×650×160
Electric Heating / Steam
1200×3600
120 KW / Steam
380 V
1000 KG
20/4
800×900×160
Interested in our food retort machine? Contact us now to get the best price!
Free Quote! WhatsApp/Tel/WeChat: +86 17837195753

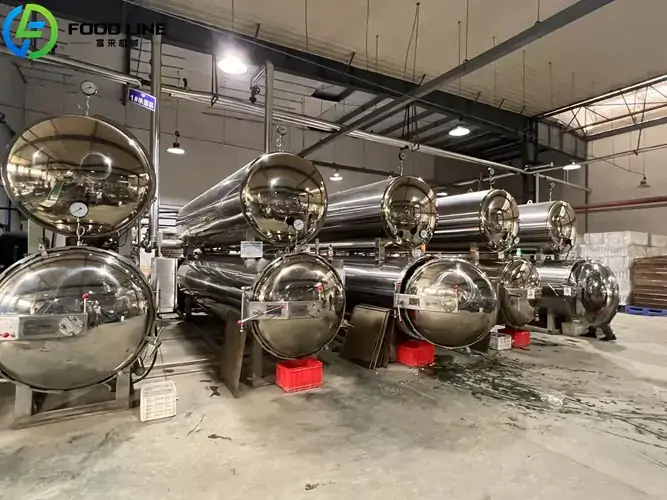

water bath retort for high temperature food sterilization

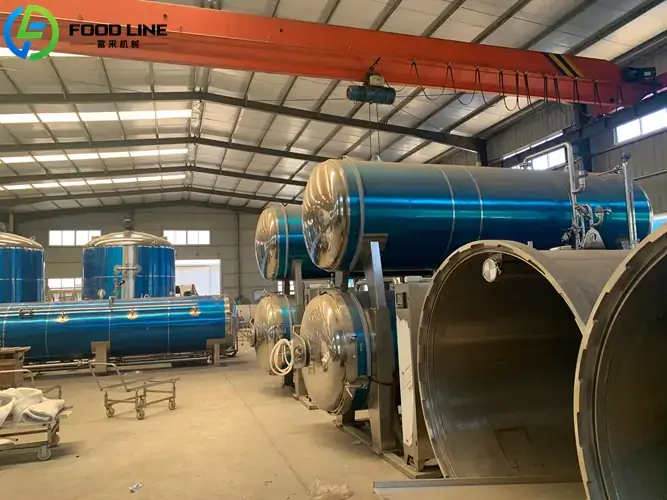

plc controlled double tank water bath retort machine
What Products Can a Food Sterilization Retort Process?
This food retort machine is suitable for a wide range of packaged food products.
Canned Food: Fruit, vegetables, meat, and fish.
Meat Products: Cooked meat, luncheon meat, meat sauce, and some sausage products.
Ready-to-Eat Food: Prepared meals, ready-to-eat rice, and soup.
Sauces and Seasoned Food: Tomato sauce, chili sauce, meat sauce, and other packaged sauces.
Seafood Products: Canned fish, shrimp, and other seafood products.
Retort Pouch Food: Pouches, aluminum foil bags, and other heat-resistant packages.
Why Our Retort Sterilizer Works Well for Your Plant
Precise Temperature Control: Different foods require different cooking times and temperatures. The PLC can precisely control both of these parameters.
True Pressure Vessel: The tank is designed to safely withstand high temperatures and pressures during daily production.
Versatile Product Compatibility: Suitable for liquid, solid, or granular foods. We can customize the basket design and loading method to suit your specific product.
Low Energy Consumption: Efficient steam or electric heating, combined with excellent thermal insulation, helps reduce your operating costs.
Highly Automated: Automatic loading, temperature control, pressure control, and timing functions reduce the need for manual operation.
Superior Sterilization Results: Every batch meets commercial sterilization standards, ensuring a longer shelf life for your products.
Let’s Turn Your Retort Requirements Into a Machine | Contact us Today
Partner with Foodline to Launch Your Project
Foodline is a real manufacturer of food retort machine for commercial and industrial sterilization use. We handle R&D, production, and export in-house. We offer a wide range of sterilization equipment, including pasteurization tanks, water-bath pasteurization lines, and uv sterilizer machines. Our equipment is widely used in markets such as the UAE, South Africa, the USA, the Philippines, and France.
To help you select the appropriate food retort machine, provide our team with the following information:
What product requires sterilization?
What are the packaging dimensions?
What is your required daily sterilization output?
Based on your product and production requirements, Foodline will provide equipment specifications, operational videos, and a price quotation.
