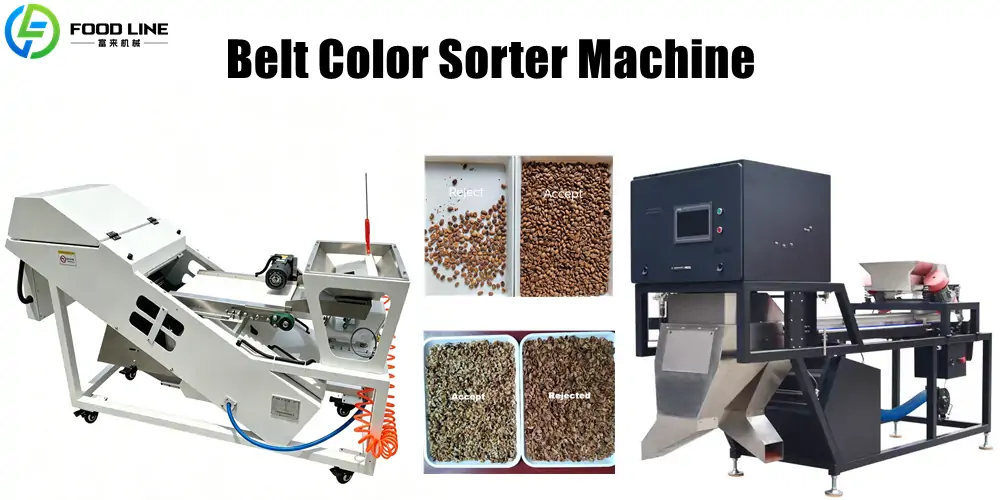

Belt Color Sorting Machine for Nuts, Dried Foods & Irregular Materials

The belt color sorting machine uses a conveyor belt to transport materials through an optical inspection zone, then separates rejects from acceptable products using air jets. It is particularly well-suited for large-particle materials, fragile food products, and irregularly shaped objects. The belt design minimizes impact, ensuring material stability throughout the inspection process. If you handle fragile products, this belt-type color sorter will optimize your production line.

Request a Custom Quote for Your Belt Color Sorter

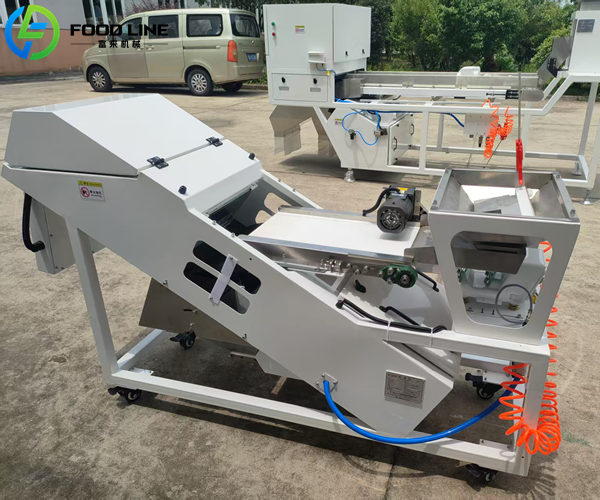

Foodline Belt Color Sorting Machine for Sale

The belt color sorter is an optical sorting system that uses a conveyor belt to transport products through a camera inspection zone. The belt moves at a constant speed, keeping the material stable. This design is ideal for materials prone to cracking, crushing, or shattering upon impact.

How the machine operates:

1. Uniform Feeding – A vibratory feeder spreads the material evenly across the belt at an optimal feed rate.
2. Smooth Belt Conveying – The belt moves the products forward at a controlled speed. Products remain relatively stable on the belt with minimal contact between them.
3. Optical Inspection – Industrial cameras, CCD sensors, and light sources scan the products. The system checks for color, shape, and visible defects based on sorting parameters.
4. Air Jet Ejection – When the system identifies a reject, a high-speed air jet pushes it into the reject outlet. Acceptable products continue moving on the belt and eventually fall into the finished product outlet.

This belt color sorting machine handles materials that would otherwise tumble or move erratically on chute-type sorters. The belt ensures material stability and control from start to finish.

International Buyer? Request a Quote Including Shipping to Your Port

Parameter Table of Industrial Belt Type Color Sorter

Power	2–3.5 kW
Number of cameras	8
Sorting accuracy	≥99%
Processing capacity	0.8–1.5 tons/hour
Machine dimensions (L×W×H)	2900×1300×2580 mm
Power supply	220V / 50Hz
Machine weight	1450 kg
Carryover rate (rejects:good products)	120:1
Number of sorting channels	256
Packaging	Processed wooden case

Need help selecting the right specifications? Tell us the material type and required capacity. Our team will evaluate the suitable belt color sorting machine model for you.

Ask About Our Current Discount on Belt Sorting Equipment

What Materials Can It Sort?

The belt color sorting machine is suitable for a wide range of agricultural products, food items, and industrial materials. It is particularly ideal for products that are large, fragile, irregularly shaped, or difficult to sort using traditional gravity chutes.

Material Category	Typical Materials	Why
Nuts & Dried Fruits	Walnut kernels Cashew nuts Almonds Peanut kernels Pine nuts Pistachios Raisins	These are high-value products. The gentle conveying method helps minimize breakage during sorting.
Agricultural Products & Dehydrated Vegetables	Dried garlic slices Dried mushrooms Black fungus Chili pieces Tea leaves Dried fruits Vegetable pieces	The belt maintains the stability of large or irregularly shaped materials during optical inspection.
Seafood & Aquatic Products	Dried shrimp Small dried fish Other dried seafood products	The low-impact conveying structure is ideal for fragile foods, preventing breakage caused by repeated drops.
Industrial & Recyclable Materials	Plastic flakes Plastic pellets Glass pieces Mineral materials Metal particles Other granular or irregular materials	Capable of identifying and rejecting visible color variations and specific surface defects based on material characteristics and sorting objectives.

You are welcome to send photos of your materials. We will evaluate whether the belt color sorting machine is suitable for your application.

Puffed snacks breaking? Ask our conveyor belt color sorter price – we reduce waste

Characteristics of Automatic Belt Color Sorter Machine

1. Low-impact conveying: Materials are supported by the belt, effectively reducing the impact forces associated with free-fall.

2. Large-particle handling: Suitable for various nuts, dried fruits, and other large-sized materials.

3. Irregular-material handling: Materials remain stable as they pass through the inspection zone.

4. Visible defect detection: The optical system identifies discoloration, black spots, mold, and other visible defects.

5. Air jet rejection: High-speed air jets separate rejected items from the stream of acceptable products.

6. Flexible sorting settings: Operators can adjust sorting parameters based on specific material types and defect characteristics.

Ready for pricing? Send a quick inquiry and get our best factory quote

Core Technical Advantages of Belt Conveyor Color Sorter

1. Low Breakage Rate

Materials lie flat on the belt during transport, avoiding high-speed drops or collisions. This design significantly reduces breakage rates for fragile items such as cashews, walnut kernels, and puffed snacks.

2. High Sorting Accuracy and Stability

Materials pass through the inspection zone at a constant, steady pace, without the bouncing, rolling, or tumbling. Cameras capture clear, stable images, improving defect detection rates and minimizing missed defects.

3. Adapts to complex shapes and large particles

Block, flake, strip, and irregularly shaped materials pass through smoothly. Items such as dehydrated vegetables, ores, large nuts, and plastic fragments are conveyed without jamming or clogging. In contrast, chute color sorters often experience jams or stoppages with such materials. This belt color sorting machine ensures continuous production flow.

Price check: belt type color sorter – send an inquiry now

Selecting Belt Color Sorting System for Your Processing Line

Different materials exhibit unique characteristics during the sorting process. Please let Foodline know the material you need to sort, your target throughput, and the types of defects you wish to remove. We will evaluate your requirements and recommend the optimal belt color sorting machine for your production line.

You can provide us with the following information:

• Material name
• Capacity (kg/h)
• Primary defects to be removed
• Existing processing equipment
• Desired equipment dimensions or production requirements

Get Your Belt Color Sorting Machine Quote Today

Foodline: China Manufacturer of Sorting Equipment

Foodline is a food processing machinery manufacturer and exporter in China. We develop and manufacture a wide range of sorting equipment, including systems for color sorting, weight-based sorting, and size grading. Our equipment is widely used in food processing operations across numerous countries.

Our high-accuracy color sorters have been exported to markets such as Chile, Switzerland, and Poland; egg weight graders to Poland, Latvia, France, Nigeria, and Romania; and fruit and vegetable size graders to markets including Saudi Arabia and France.

Foodline’s color sorting machine can be integrated into complete food processing lines tailored to specific products and production requirements.

Why Choose Foodline?

• Direct from Manufacturer — In-house production ensures quality control.
• Export Experience — Equipment sold to multiple countries.
• Customization Support — Equipment configurations can be adjusted to project needs.
• Technical Support — Our team provides pre-sales and post-sales technical guidance.
• After-Sales Service — Warranty support and long-term maintenance services provided.
