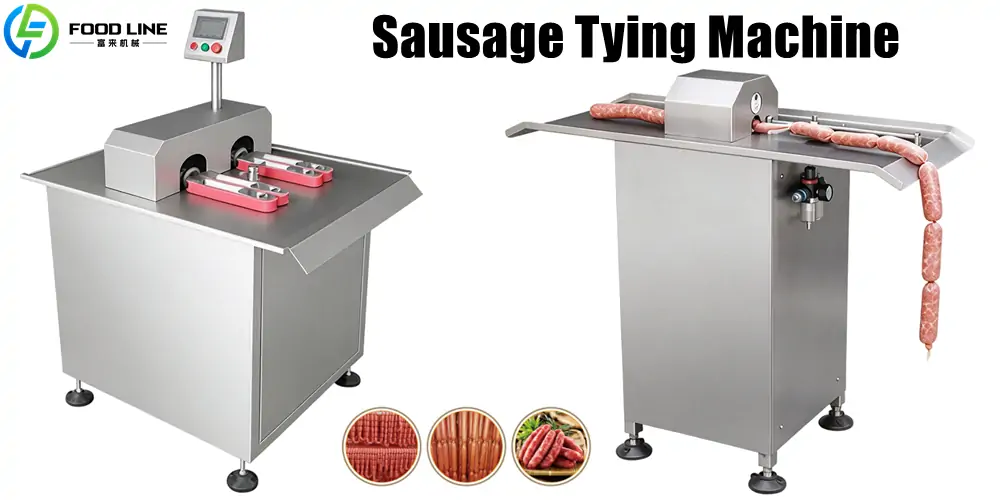

Sausage Tying Machine for Sausage Production Lines

Foodline Automatic Sausage Tying Machine for Sale

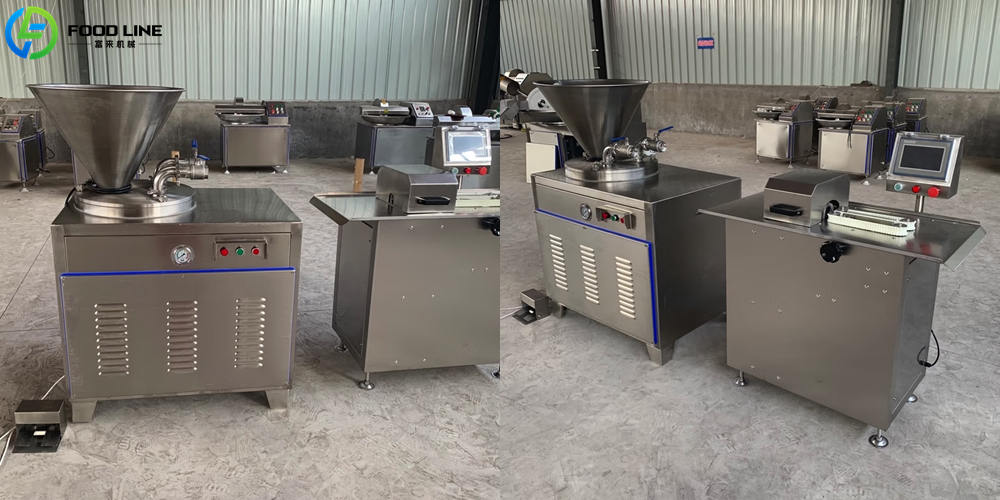

This machine is used after the sausage stuffer machine in a sausage production line. It cuts the stuffed sausages into sections of a set length, and ties knots at each joint to ensure that the filling does not overflow from both ends. After this process, proceed to the cooking, cooling, packaging, and sales stages. This equipment is suitable for meat processing plants, sausage production lines, meat product workshops, and medium-to-large-scale food factories.

We offer both semi-automatic and fully automatic models. The sausage binding machine’s workflow is simple:

1. The filled casing moves from the sausage stuffer to the tying unit.
2. The servo system precisely controls the preset length of each sausage section.

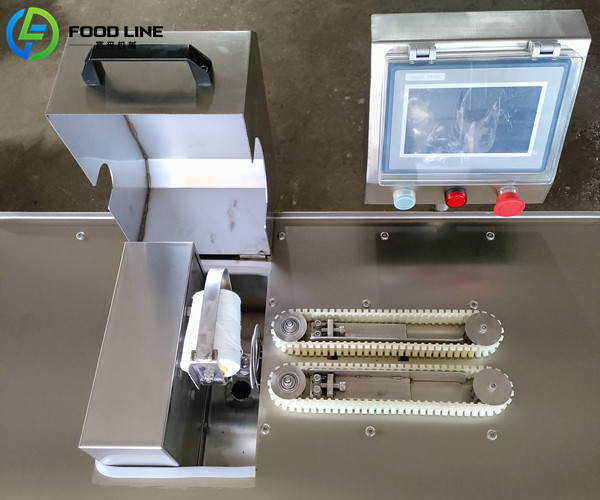

3. The tying mechanism wraps food-grade twine around the casing.
4. The machine tightens the twine to secure the casing.
5. The tied sausages move out for the next processing step.

The tying tightness, number of twine wraps, and length of each sausage section can all be adjusted.

Free Quote! WhatsApp/Tel/WeChat: +86 17837195753

Technical Data of Foodline Sausage Tying Equipment

Model	Single-Lane	Double-Lane
Production Capacity	10–100 links/min, adjustable	100–600 links/min
Power Supply	220 V, 50 Hz	220 V, 50 Hz
Sausage Diameter	9–35 mm	9–28 mm
Sausage Length	30–300 mm	10–300 mm
Power	1.5 kW	3 kW
Machine Dimensions	1100 × 500 × 900 mm	1100 × 850 × 1250 mm

If you plan to integrate the this sausage tying machine with an existing sausage stuffing machine or a complete production line, provide us with information about your existing equipment so we can assess compatibility.

Inquire Now About Single-Lane or Double-Lane Models

Highlights of Our Sausage Tying Knotting Machines

• The servo motor and touchscreen control system ensure fast, stable, automatic operation.
• The advanced tying mechanism gently ties the casings, helping to prevent damage.

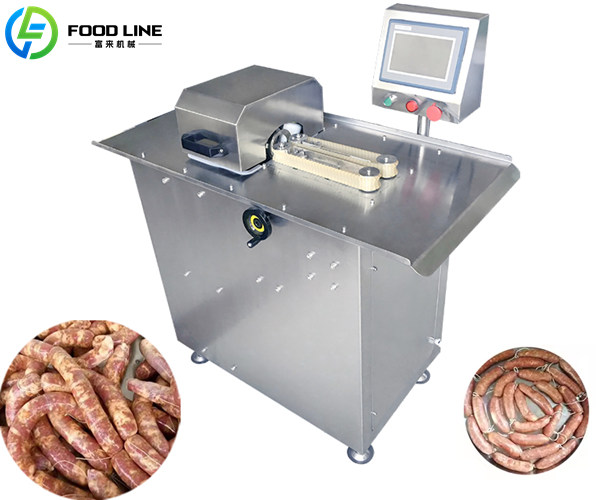

• Single-lane and double-lane models support automatic tying, requiring only minimal supervision from the operator.

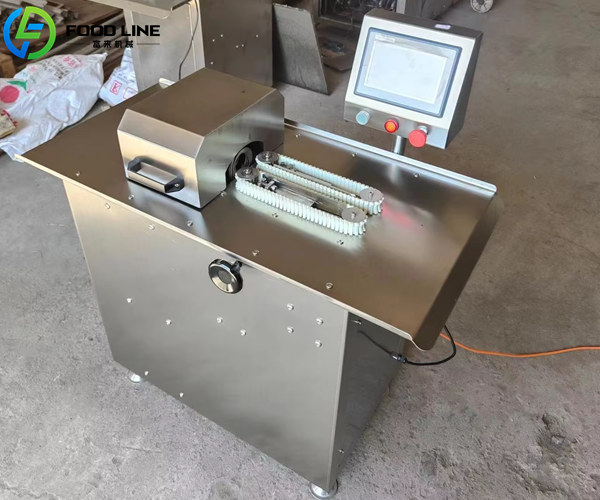

• The compact stainless steel body is easy to operate. It saves raw materials and uses less energy.
• The waterproof body helps protect electrical components from water.
• The sausage tying machine can connect directly with an automatic sausage hanging machine.

Upgrade to Automatic Sausage Tying – Request a Quote Today

Foodline Machinery: Supporting Your Sausage Production Needs

Henan Foodline Machinery Co., Ltd. manufactures various food processing equipment and serves the meat, bakery, fruit and vegetable, and broader food industries. We offer the sausage tying machine and complete sausage making machine line to meet diverse production needs.

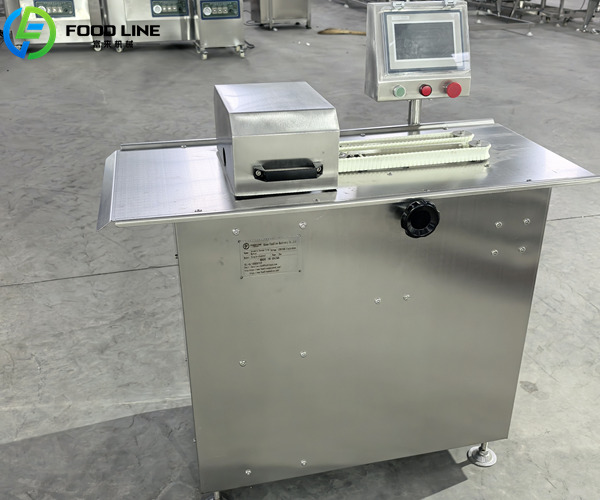

Our sausage tying equipment has been exported to numerous countries. For instance, a client in Saudi Arabia purchased a single-lane tying machine and a hydraulic stuffer from Foodline. These machines have effectively supported sausage stuffing and tying processes.

Feel free to contact Foodline to discuss your sausage production line requirements. Let us know your sausage specifications, expected output, and current processing workflow. We’ll help you select the most suitable sausage casing tying machine.
