Food Metal Detector for Food Production Lines

The food metal detector is essential equipment for food manufacturers to detect metal contaminants in packaged or bulk food products. Foodline offers conveyor metal detector capable of identifying ferrous metals, non-ferrous metals, and stainless steel particles during the food production process. This equipment helps factories enhance product safety and perform final quality inspections before products reach the market. Get in touch with Foodline for a free quotation!

Get a Free Quote – Factory Direct Metal Detector Machines

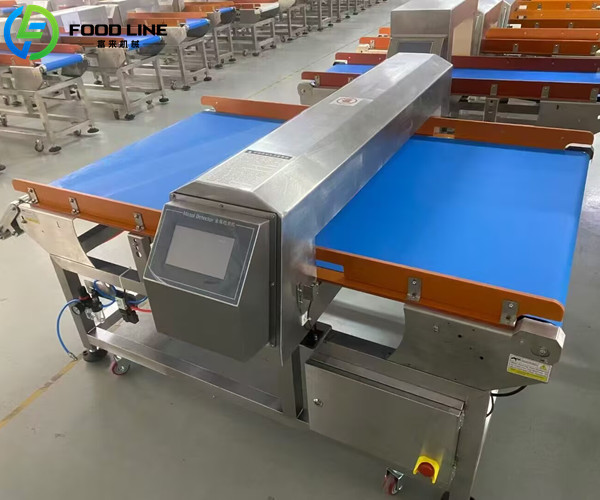

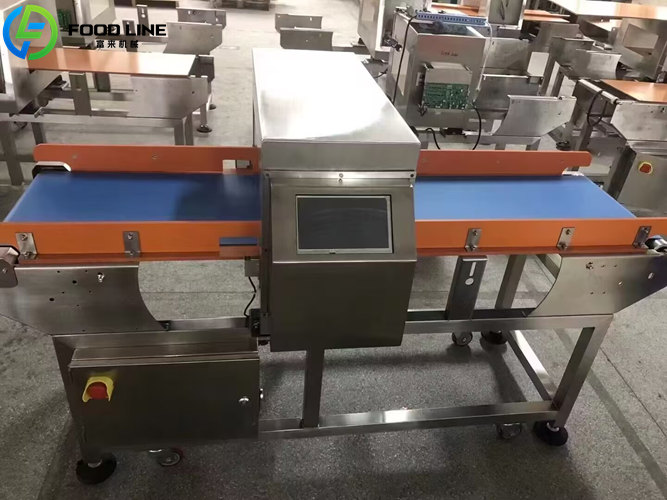

Foodline Food Metal Detector for Sale

This food metal detection machine is an automated inspection system to identify metal impurities within food products. It utilizes electromagnetic induction technology to detect metal particles inside the product, and triggers an alarm upon detection.

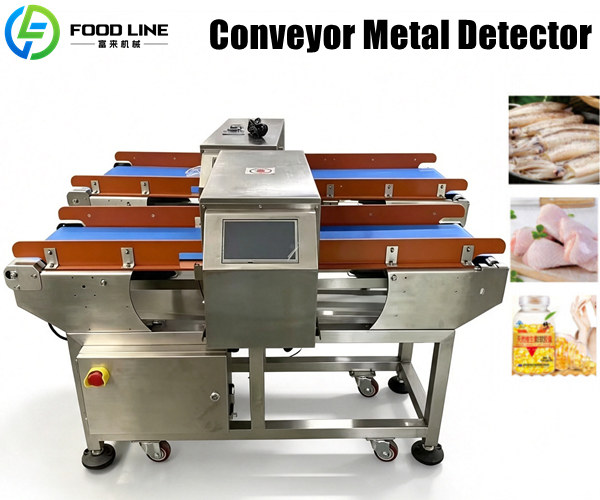

Foodline conveyor metal detector machine can be integrated with various food processing systems. It is usually installed at the end of food production lines or at critical inspection points to screen products before they leave the facility. It helps manufacturers mitigate risks associated with metal contamination, such as customer complaints, product recalls, and equipment damage.

In food packaging production, a typical configuration follows this sequence:

Food processing equipment → Packaging machine → Food metal detector → Automatic rejection system → Finished product conveyor

Examples include:

• Installed downstream of a VFFS (Vertical Form-Fill-Seal) packaging machine
• Paired with a vacuum packaging machine
• Integrated into a frozen food packaging line

Start Your Metal Detection Project with Foodline

Specifications of Foodline Food Metal Detection Equipment

Machine Material	304 stainless steel (316 stainless steel available for customization)
Conveyor Belt Material	Food-grade PU material (other materials available upon request)

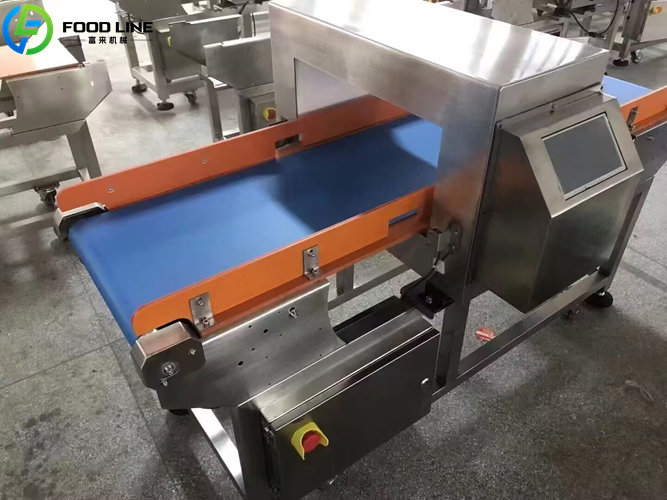

Human-Machine Interface	LED digital display / 7-inch LCD touchscreen
Operating Language	Chinese / English (other languages available for customization)
Detection Method	Electromagnetic wave detection
Detection Sensitivity	Ferrous ball: φ1.5 mm, Non-ferrous ball: φ2.0 mm, Stainless steel ball: φ3.0 mm
Sensitivity Adjustment	100 levels adjustable
Alarm Method	Audible and visual alarm
Conveyor Speed	Fixed speed: 20 m/min or adjustable speed: 15-30 m/min (customizable)
Detection Opening Size	Width 400 mm × Height 200 mm
Conveyor Height from Ground	680 mm + 200 mm (customizable height)
Input Voltage / Power	Single-phase 220VAC or 110VAC, 200W
Machine Weight	160 kg
Overall Machine Length	1600 mm (customizable length)

Foodline develops a wide range of metal detector machines for food industry! Get in touch for a quote!

Plan Your Food Metal Detection System Today

What Metals Can Be Detected?

This industrial food metal detector can identify various metal contaminants that may enter food products during the processing stage.

Metal Type	Common Sources
Ferrous Metal	Equipment wear, broken tools, steel fragments
Non-Ferrous Metal	Copper wire, aluminum pieces, brass parts
Stainless Steel	Mechanical parts, screws, welding fragments

Ferrous metals exhibit strong magnetic properties, making them easier to detect. Stainless steel has weaker magnetic properties, so detection equipment requires higher sensitivity.

Metal detectors for food production help factories identify these contaminants before products leave the production area.

Lock in Competitive Pricing – Send Your Inquiry Now

Performance Features of Our Metal Detector for Food Industry

1. Detects Multiple Metal Types

The equipment detects ferrous metals, non-ferrous metals, and stainless steel particles, including iron, copper, aluminum, and SUS materials.

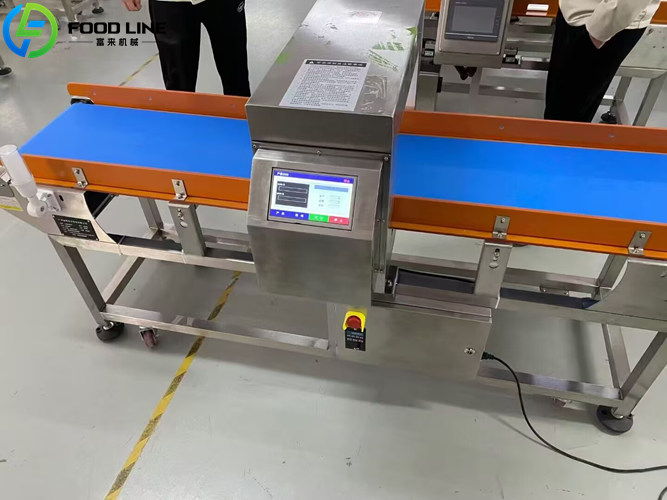

2. 7-Inch LCD Touchscreen

The multilingual interface is easy to operate, with clear and intuitive parameter settings that meet daily production needs.

3. One-Touch Product Learning

The system automatically learns and saves product parameters after a single pass, reducing setup time when switching between products.

4. Automatic Phase Adjustment

This technology minimizes product interference during inspection, improving detection accuracy for frozen foods, meat, fruit, and other high-moisture products.

5. High Detection Sensitivity

The equipment reduces detection blind spots, facilitating the identification of minute metal contaminants during continuous production.

Submit Your Project Details for a Fast Quote

Metal Detection Machine for Food Industries

Snack Food Industry	Potato chips, French fries, Popcorn, Nuts, Peanuts, Sunflower seeds, Dried fruit, Beef jerky, Biscuits/Cookies, Chocolate, Candy
Meat Processing Industry	Sausages, Ham, Bacon, Cured meat, Meatballs, Meat patties, Deli meats, Vacuum-packed meat products
Frozen Food Industry	Frozen dumplings, Frozen glutinous rice balls (Tangyuan), Frozen steamed buns (Baozi), Frozen vegetables, Frozen fruit, Frozen fish, Shrimp/Prawns, Seafood products
Bakery Industry	Bread, Cakes, Mooncakes, Cookies/Biscuits, Egg tarts, Pastries

Send Your Inquiry to Foodline Now

Foodline: Your Source for Food Processing Equipment

Foodline is a manufacturer and supplier of food processing equipment in China. We provide high-quality food machinery to clients worldwide.

Our food metal detection equipment is widely used across various food production and manufacturing sectors: bread production lines, biscuit production lines, candy production lines, powder filling lines, frozen food processing lines, etc. The food metal detector helps food plants establish reliable metal detection processes within their production systems.

• Foodline operates its own manufacturing facility for food processing machinery.
• We have supplied food machinery to clients across numerous countries and regions.
• We provide installation guidance and operational support to our clients.
• Our experienced production team handles both standard orders and large-volume procurement needs.
• Machines are securely packaged to comply with international shipping standards.
• Clients can inspect the machinery and its production status prior to shipment.

Get a Quote for Food Metal Detectors

Planning to add metal detectors for food production line? Send us your project details, including products to be inspected, number of machines you need, required conveyor belt height and width, and expected purchase time. We will provide a suitable configuration and quote based on your needs.
