Commercial Freeze Dry Machine

automatic lyophilizer freeze dryer
automatic lyophilizer freeze dryer

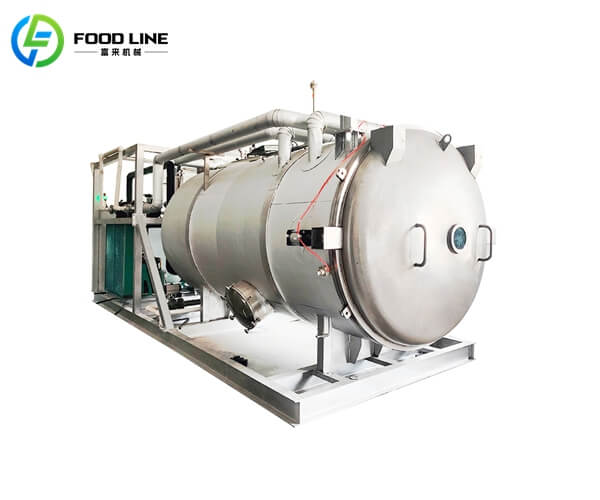

commercial freeze dry machine
commercial freeze dry machine

Imagine enjoying a juicy strawberry in the middle of winter or sipping coffee that tastes freshly brewed even months after it was made. This isn’t magic—it’s the work of a commercial freeze dry machine. Freeze drying is a cutting-edge food preservation method that removes moisture from products while retaining their nutritional value, flavor, and texture.

Technical Parameters of Automatic Freeze Dryer

ModelTray sizeCapacity for raw materialHeating methodHeating plates height
FLFD-1610*410*25mm10kg/batchElectricity90mm
FLFD-51500*650*30mm50-80kg/batchElectricity90mm
FLFD-10540*1000*30mm100kg/batchElectricity90mm
FLFD-20610*610*35mm200kg/batchSteam90mm
FLFD-50610*610*35mm500kg/batchSteam90mm
FLFD-100610*610*35mm1000kg/batchSteam90mm
FLFD-200610*610*35mm2000kg/batchSteam90mm

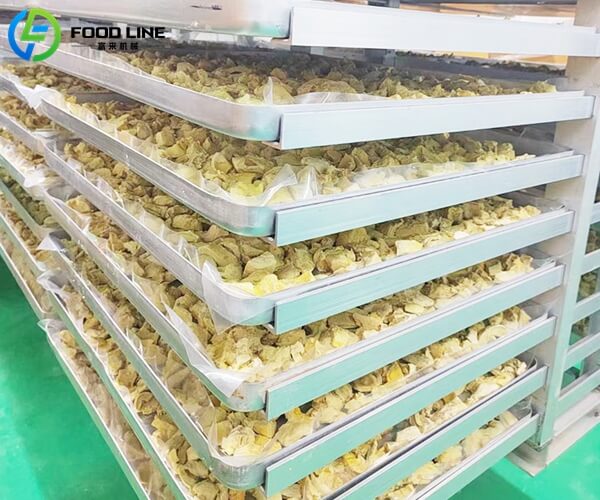

freeze drying machine product
freeze drying machine product

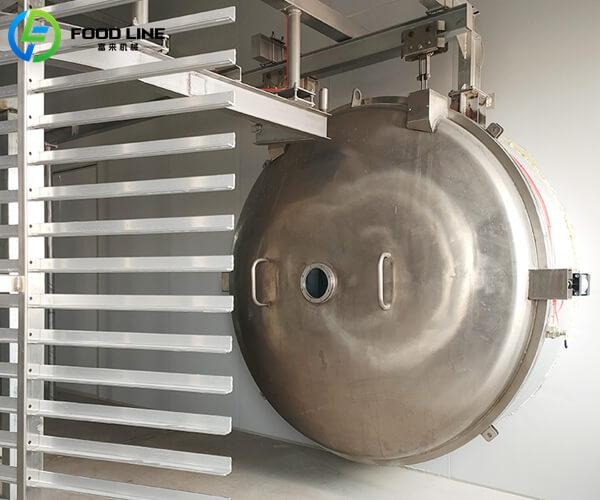

multi purpose freeze drying machine
multi purpose freeze drying machine

How Does a Commercial Freeze Dry Machine Work?

Freeze-drying is a three-step process: freezing, primary drying (sublimation), and secondary drying (adsorption). Each step is carefully controlled to ensure the best results.

1. Freezing

First, the product is frozen at extremely low temperatures. This turns all the water inside into ice. Quick freezing is key because it creates small ice crystals, which are easier to remove later. Slow freezing can create large crystals that damage the product’s structure.

2. Primary drying (Sublimation)

Next, the frozen product is placed under a vacuum. This creates a low-pressure environment where ice can turn directly into water vapor without melting first—a process called sublimation. Heat is applied gently to encourage this change, but the temperature stays below the point where the product would melt. This step removes about 95% of the water.

3. Secondary drying (Adsorption)

The final step removes any remaining water molecules that are bound to the product. The temperature is raised slightly, and the pressure remains low. This ensures the product is completely dry and stable for long-term storage.

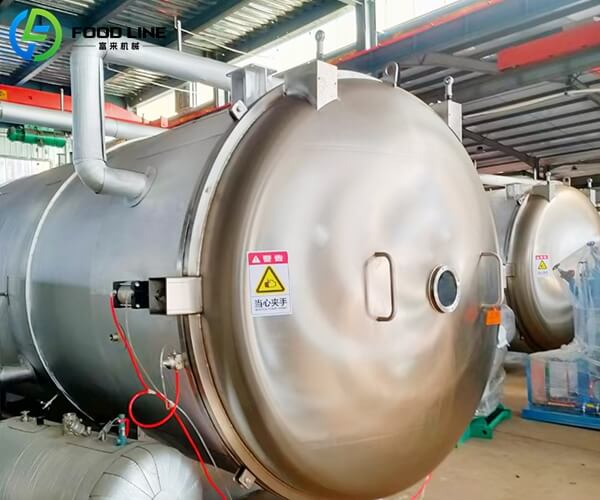

commercial freeze dry machine for sale
commercial freeze dry machine for sale

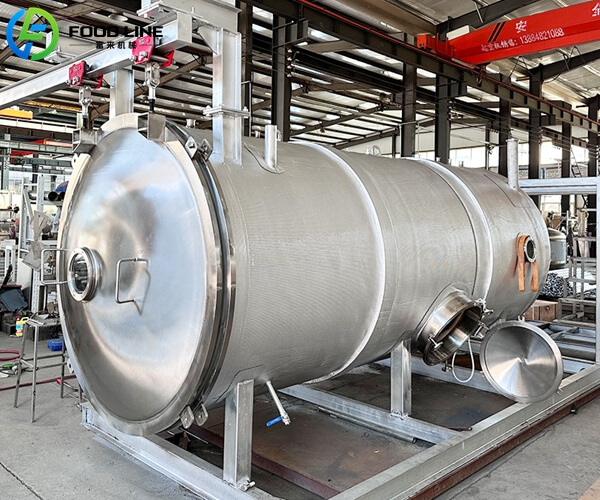

high quality freeze dryer
high quality freeze dryer

Why Use Freeze Drying and Freeze Dryer?

Our high-quality commercial freeze dry machines offer several advantages.

1. Preserves nutrition and flavor. Because freeze drying uses low temperatures, it doesn’t destroy heat-sensitive vitamins or flavors. For example, freeze-dried fruits retain their vibrant color and taste almost as fresh as the day they were picked.

2. Lightweight and portable. Removing water reduces the product’s weight by up to 90%. This makes freeze-dried foods ideal for hikers, astronauts, and emergency rations.

3. Long shelf life. Without water, bacteria and enzymes can’t grow or react. Freeze-dried products can last years without refrigeration, making them perfect for storing medicines or emergency food supplies.

4. Minimal damage to structure. The process keeps the product’s shape and texture intact. Freeze-dried flowers, for instance, look almost identical to fresh ones.

Common Misconceptions About Freeze Drying

  • Myth 1: “Freeze-dried foods are unhealthy.”

Truth: It is not true! Unlike preservation methods that rely on high heat or synthetic chemicals (which often destroy sensitive nutrients), freeze drying—executed in a precision freeze dryer—safeguards most vitamins, minerals, and bioactive compounds.

  • Myth 2: “Freeze-drying is the same as regular dehydration.”

Truth: These are fundamentally different processes. Conventional dehydration uses sustained heat to boil off water, which can scorch flavors, wilt textures, and degrade nutrients. A commercial freeze drying equipment, however, works by sublimation: it freezes the food, then gradually lowers pressure to transform ice crystals directly into water vapor—no liquid phase, no high heat. This gentle approach preserves the food’s original structure, taste, and nutritional profile far more effectively.

  • Myth 3: “Freeze-dried products are full of preservatives.”

Truth: Preservatives are unnecessary here. The core principle of freeze-drying is radical moisture removal. With almost all water eliminated, bacteria, mold, and yeast cannot survive or multiply—making the product shelf-stable without added chemicals. Your freeze-dried snack is just that: food, nothing more.

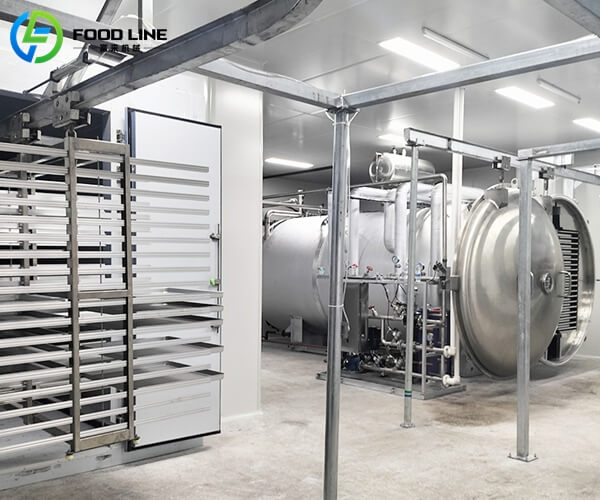

reliable commercial freeze dry machine
reliable commercial freeze dry machine

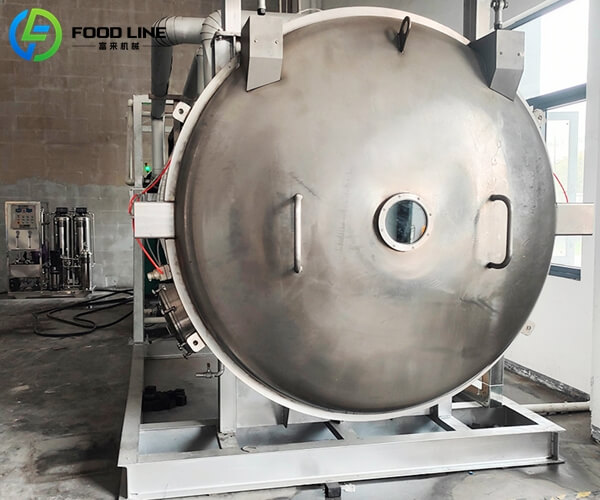

precision freeze dryer
precision freeze dryer

Market Prospect of Commercial Freeze Dryers

The market prospect for commercial freeze dry machine is very promising.

With the increasing focus on healthy and high-quality products, the demand for freeze-dried products is growing. This drives the need for professional freeze dryers in various industries.

In the food industry, more and more food manufacturers are adopting freeze-drying technology to produce nutritious and convenient products. This trend is expected to continue, increasing the sales of freeze drying equipment.

The pharmaceutical and cosmetics industries also have a growing demand for freeze – dried products. As research and development in these fields progress, the use of commercial freeze dryers will expand.

Moreover, the development of e-commerce makes it easier to sell freeze-dried products to a wider market. This, in turn, encourages more businesses to invest in freeze dried machines to meet the market demand.

China Reliable Commercial Freeze Dry Machine Manufacturer

FoodLine concentrates on designing and producing high-quality lyophilization equipment for various industries, including food, pharmaceuticals, biotechnology, and chemicals. Our advanced freeze dryers are engineered for efficiency, durability, and precision, ensuring optimal preservation of product quality, flavor, and nutritional value.
