Foodline meat vacuum tumbler provides deeper flavor penetration, improved tenderness, and significant reductions in preparation time, whether you’re producing hams, sausages, restructured steaks, or ready-to-cook marinated goods. Contact us today and learn how our solutions can work for you: Phone/WhatsApp/WeChat: +86 17837195753.
Click here to get your business started!
What Is a Meat Vacuum Tumbler?

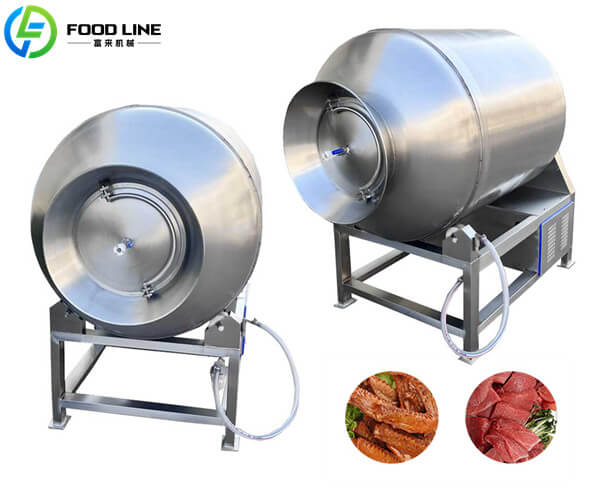

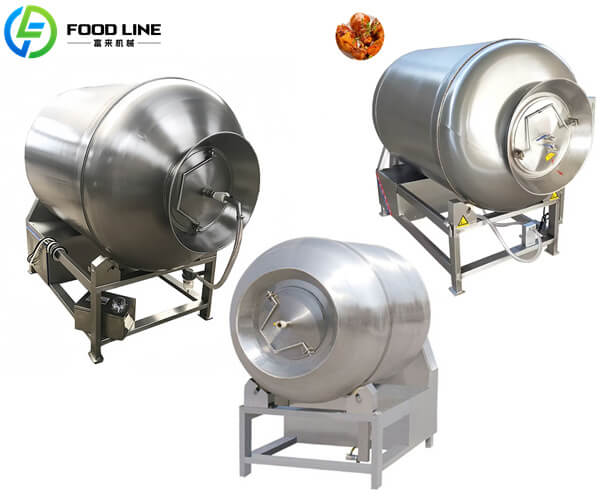

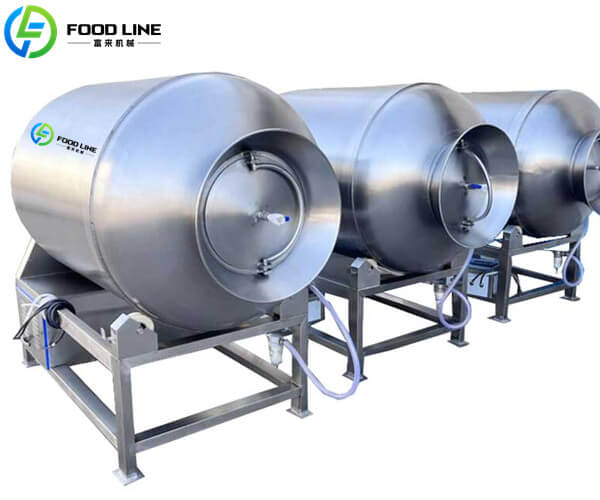

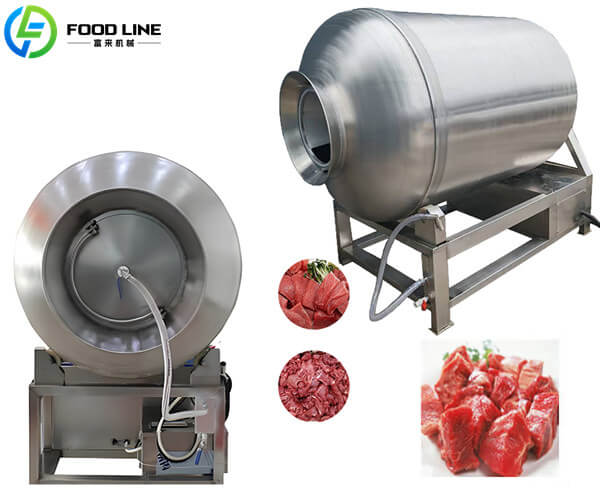

A commercial vacuum tumbler is an intelligent marinating machine that tumbles, massages, and kneads meat pieces in a low-pressure (vacuum) environment. This machine has a slowly rotating, sealed drum with special lifting plate inside. As the drum turns, the lifting plate lifts the meat and marinade (brine) up, then let them drop down gently. This process repeats over and over, giving the meat a thorough but gentle “massage.” Meanwhile, a vacuum pump removes air from the drum, creating a unique low-pressure setting. The combination of physical massage and vacuum effect works together to improve the meat’s texture and quality.

Specifications of Vacuum Tumbler Machine
| Model | FL-50 | FL-100 | FL-200 | FL-300 | FL-500 | FL-1000 |
| Rated Voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 380V | 380V |
| Rated Power | 1.1kw | 1.5kW | 2.25kw | 2.25kw | 2.95kw | 4.5kW |
| Volume | 50L | 100L | 200L | 300L | 500L | 1000L |
| Production | 600mm | 700mm | 800mm | 900mm | 1000mm | 1200mm |
| Inner Diameter | 28kg/time | 60kg/time | 120kg/time | 200kg/time | 300kg/time | 800kg/time |
| External Dimensions | 840x530x900mm | 1200x750x1200mm | 1230x710x1300mm | 1400x900x1500mm | 2000x1000x1500mm | 2250x1200x1850mm |
Instant Quote! Phone/WhatsApp/WeChat: +86 17837195753
What the Meat Vacuum Tumbler is Used For?
A vacuum tumbler achieves faster, deeper marinating by pushing marinades, seasonings, and spices deep into the meat quickly and evenly, cutting down marinating time.
The tumbling action helps extract salt-soluble proteins from the meat, which later form a gel when heated, improving binding and moisture retention.
This vacuum marinator effectively improves meat texture by relaxing and softening muscle fibers through gentle tumbling and massaging, resulting in more tender meat.
The vacuum marinating machine enables binding of meat pieces naturally, as extracted proteins firmly combine different pieces, ideal for making restructured steaks, chicken steaks, and formed ham products.
Your Free Quote is One Click Away


Where You’d Use Vacuum Meat Tumbler?
Western hams and bacon are ideally prepared using a vacuum tumbler machine. It ensures boneless hams, block-shaped hams, and sandwich slices turn out springy, juicy, and slice perfectly.
Chinese marinated dishes such as whole chickens, pig trotters, and beef shank benefit from vacuum tumbling, which drives flavor deep into the bone and delivers tender meat.
Roasted meat products like whole roast ducks, turkeys, or Turkish roast meat achieve even seasoning distribution and remain tender when prepped in a meat vacuum tumbler.
Restructured steaks are easily created by binding beef, chicken, or mutton pieces into steaks that boast a uniform shape and consistent texture thanks to vacuum tumbling.
Low-temperature meat products including various hams that undergo long, low-temperature sterilization rely heavily on the tumbling process beforehand to develop their desired texture.
Free Quote! WhatsApp/Tel/WeChat: +86 17837195753
FAQs
Q1: Is longer tumbling always better?
No. Tumbling for too long can increase the meat’s temperature and excessively alter its structure, making it mushy and ruining the texture. You must find the optimal time through testing, based on the meat type, cut size, and desired product.
Q2: Why is a vacuum necessary? Can tumbling be done without it?
The vacuum is essential. Without it, air blocks the brine from penetrating deeply, leading to uneven flavor. The tumbling can also create lots of foam, and the meat’s color can turn dull due to oxidation. Bacteria might also grow more easily. The vacuum is key for quality, color, and safety.
Q3: Should the meat rest after tumbling?
Usually, yes. Letting the meat “rest” (or mature) after tumbling is an important step. During this time, the brine that entered the meat spreads out more evenly and interacts further with the proteins, improving the final texture and taste.
Tailored Solutions Start with Your Free Quote!


Why Choose Foodline?
Foodline Machinery is a high-tech enterprise focusing on the R&D, manufacturing, and sales of food processing equipment. We provide end-to-end solutions, from engineering design to after-sales support, ensuring our clients receive the most efficient and reliable machinery for their production needs.
Our advantages include:
- Integrated R&D & manufacturing
- Proven performance & reliability
- Professional technical support
- Global client trust
Have questions or need a customized solution? Reach out to our experts for a free consultation or detailed quotation: Phone/WhatsApp/WeChat: +86 17837195753; Email: admin@foodlineproduct.com.
