IQF Freezer for Fast Individual Quick Freezing of Food Products
iqf freezer for fast individual quick freezing
high efficiency fluidized bed iqf freezer
An IQF freezer is a continuous quick-freezing system for fruits, vegetables, seafood, meat products, and prepared foods. IQF means “Individual Quick Freezing”; this technology freezes each product piece separately. The IQF freezing machine utilize a rapid circulation of cold air (ranging from -30°C to -45°C) to preserve the food’s texture, color, and freshness after freezing. Foodline supplies this quick freezing equipment to food processing plants requiring high freezing efficiency and consistent production. Contact us today for more details and a free quote.
Get Pricing on Individual Quick Freezing Systems
Foodline IQF Freezer for Sale
The IQF freezing machine uses high-speed cold air circulation to freeze food quickly. It is widely used in modern food processing plants for freezing seafood, vegetables, fruits, meat, and ready-to-eat meals.
The core of IQF technology is individual quick freezing. Each piece of food passes through the freezing chamber and is frozen separately. The resulting product remains loose and free-flowing, making packaging, storage, and transportation convenient.
Compared to traditional cold storage rooms, IQF freezers operate much faster. This rapid freezing minimizes the formation of large ice crystals, and helps to preserve the food’s structure, taste, color, and nutritional value.
The most common type of IQF freezer is the fluidized bed freezer. It uses a closed insulated tunnel with cold air at -30°C to -45°C. The bottom air system blows high-speed cold air upward, and the vibrating mesh belt helps small food pieces move freely in the freezing chamber.
Its freezing process consists of two stages:
The first stage rapidly freezes the food’s surface to minimize sticking.
The second stage lowers the internal temperature to below -18°C.
iqf quick freezing machine
Freeze Food Faster with IQF Technology – Inquire Now
Technical Specifications of Foodline IQF Freezing Machinery
Model
FL-300
FL-500
FL-1000
FL-1500
FL-2000
FL-3000
Dimensions (L×W×H)
6900×4200×3200
8200×4200×3200
11200×4300×3300
14200×4300×3300
17200×4300×3300
21500×4500×3300
Belt Width
1200
1200
1250
1250
1250
1300
Inlet Opening Length
1200
1500
1500
1500
1500
1500
Outlet Opening Length
700
700
700
700
700
800
Cooling Capacity (kW)
62
95
185
230
340
480
Installed Power (kW)
24
30
53
75
98
102
Compressor (HP)
95
160
130×2
200×2
160×3
200×3
Total Power (kW)
96
152
248
373
456
550
Submit Your Freezing Equipment Requirements Today
fluidized iqf tunnel freezer for blueberry strawberry raspberry
How Does an IQF Freezer Work?
The individual quick freezer consists of a refrigeration system, a conveying system, a cold air circulation system, a freezing chamber, and a control system.
Its workflow includes: Food Feeding → Conveyor Transport → Cold Air Exchange → Individual Freezing → Frozen Product Discharge
During operation:
Food products enter the freezing chamber through a stainless steel mesh conveyor.
Powerful fans create high-speed cold air circulation inside the chamber.
Cold air quickly removes heat from the product surface.
Food passes through the main ice crystal formation area in a short time.
Each product freezes separately and keeps a loose shape.
Frozen products move to the packaging or next processing stage.
The IQF freezer rapidly lowers product temperature, facilitating the formation of tiny ice crystals within the food. This process minimizes damage to food cells and enhances quality after thawing.
Have a Project in Mind? We’d Love to Hear About It
screw refrigeration unit
stainless steel polyurethane insulation panel
high efficiency heat transfer technology
What Makes IQF Equipment Suitable for Food Processing
1. Individual Freezing to Prevent Product Sticking
Unlike traditional freezing methods that can create large ice blocks, IQF technology keeps each piece separated after freezing. So the IQF freezing system is useful for products such as peas, berries, shrimp, diced vegetables, and meat pieces.
2. Fast Freezing Performance
The IQF freezing unit utilizes powerful cold air circulation to shorten freezing times. Fast freezing allows food to quickly pass through the ice crystal formation range quickly, thereby preserving the product’s structural integrity.
3. Continuous Production Capacity
The IQF freezer is designed for use with continuous conveying systems. It can connect with washing machines, cutting machines, and packaging machines to create a complete food production line.
4. Flexible Processing for Different Foods
By adjusting parameters such as freezing temperature, conveyor speed, air speed, and freezing time, the IQF freezing equipment can process different food sizes, shapes, and moisture levels.
5. Food Grade Construction
The IQF freezing machinery is constructed using food-grade stainless steel materials. The smooth surface facilitates cleaning and routine maintenance during food production.
Free Quote! WhatsApp/Tel/WeChat: +86 17837195753

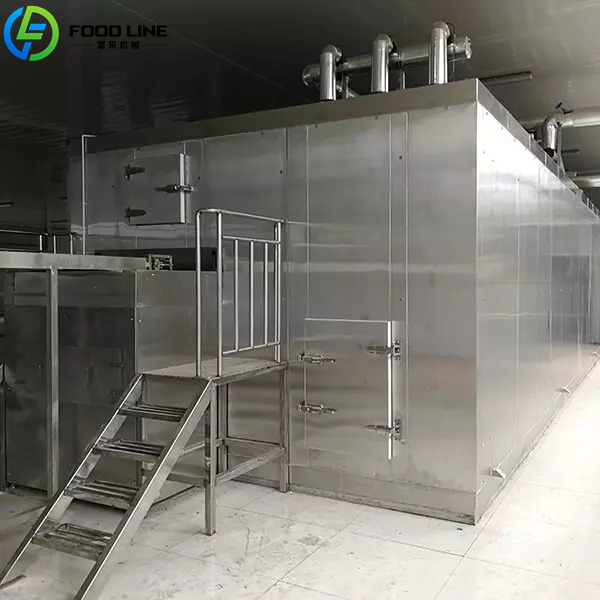

industrial individual quick freezing equipment for food factories

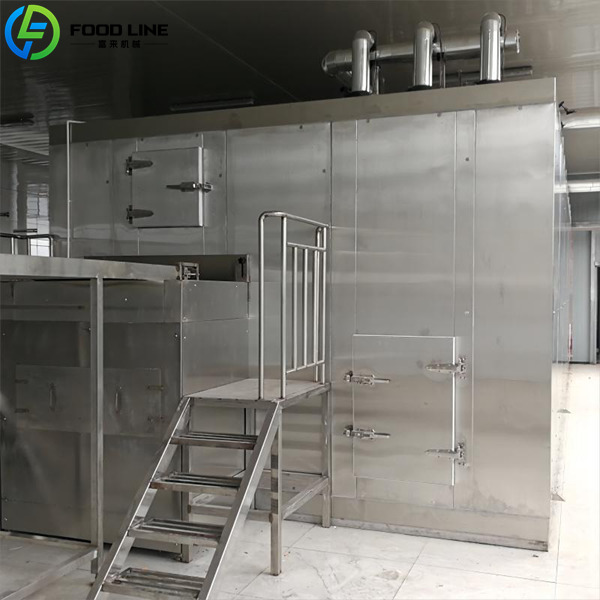

energy saving individual quick freezing machine for food processing
Benefits of Investing in Individual Quick Freezing Equipment
1. Longer Product Storage Time
Quick freezing helps reduce food quality loss and enables frozen products to be stored and transported for a longer period of time.
2. Better Product Quality
The IQF freezer creates small ice crystals during freezing. Frozen products can keep better texture, appearance, and taste after thawing.
For fruits and vegetables, IQF freezing helps preserve natural color and shape; for seafood and meat products, it helps reduce moisture loss upon thawing.
3. Higher Product Value
IQF frozen foods offer an attractive appearance and allow for easy portion control. They are ideal for:
Supermarket frozen food products
Restaurant supply
Export frozen food markets
Ready-to-cook food production
4. Lower Product Loss
Individual Quick Freezing minimizes product sticking and damage during storage and packaging. It helps facilities improve raw material utilization and reduce waste.
Protect Food Texture and Color – Ask About IQF Freezing

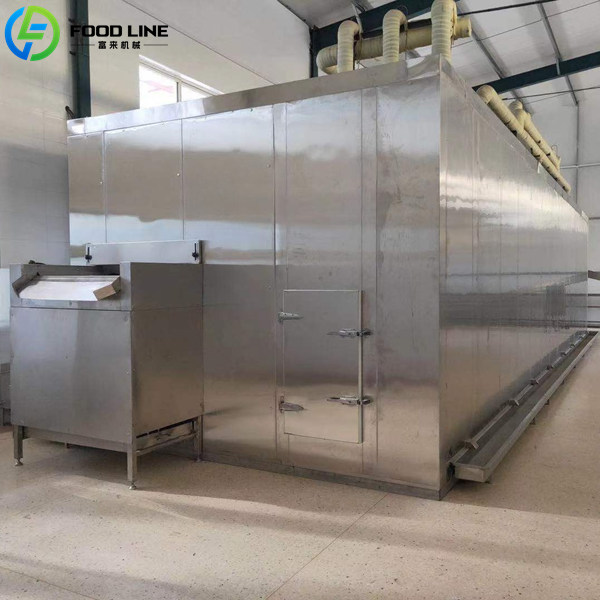

continuous individual quick freezer for frozen food production
sweetcorn with iqf freezing
Why Does an IQF Quick Freezer Keep Products from Sticking?
The non-sticking effect is achieved through several key technologies:
1. Fast Surface Freezing
The IQF freezer quickly freezes the surface layer of the food, creating a frozen surface that minimizes direct contact between individual product pieces.
2. Small Ice Crystal Formation
Rapid freezing inhibits the growth of large ice crystals. Tiny ice crystals help maintain product structure and reduce damage.
3. Product Movement Inside the Freezing Chamber
In fluidized bed IQF freezers, upward cold air and belt vibration keep small products moving, preventing products from sticking to each other during freezing .
4. Accurate Freezing Control
Temperature, airflow, and conveyor speed can be adjusted according to different products. Proper freezing conditions help maintain separate frozen pieces.
Industries and Products Using IQF Quick Freezing Equipment
The IQF blast freezer is widely used in the food processing industry.
Application Industry
Suitable Products
Benefits of IQF Freezing
Seafood Processing
Shrimp, fish fillets, squid, shellfish, scallops
Helps maintain the shape, texture, and freshness of seafood after thawing. Reduces moisture loss and keeps product pieces separate to facilitate packaging.
Helps maintain meat quality and reduces product sticking during freezing, storage, and transportation.
Prepared Food Production
French fries, dumplings, spring rolls, frozen snacks, ready-to-cook meals
Supports continuous production of frozen foods and improves product appearance and operational efficiency.
Foodline IQF freezer offers flexible freezing solutions for a wide range of food processing needs. It is particularly well-suited for small particles, sliced products, and individual food pieces that require separate freezing.
Foodline Produces Freezing Equipment for Global Food Businesses
As a China-based manufacturer and supplier of food processing equipment, Foodline provides advanced quick freezing solutions to food processing plants worldwide. Our product range includes tunnel freezers, spiral freezers, and fluidized bed freezers (IQF freezers).
As a direct manufacturer, Foodline leverages professional technical support and flexible customization options to ensure our clients receive reliable freezing equipment.
Factory Direct Price – Direct purchase from Foodline factory with competitive pricing.
Complete Manufacturing Process – Machine production, assembly, and testing are completed in our factory.
Project-Based Equipment Selection – We recommend suitable machines based on product and capacity needs.
Global Market Reach – Foodline equipment is exported to destinations worldwide.
Contact Foodline for Your IQF Freezer Requirements
Contact Foodline today to receive a free quote for your IQF quick freezing machine. Please provide the following information so we can recommend the right equipment for your project:
Type of product to be frozen
Required hourly production capacity
Available facility space
Local voltage and frequency requirements
Our team will assess your needs and provide details on suitable freezing equipment.
